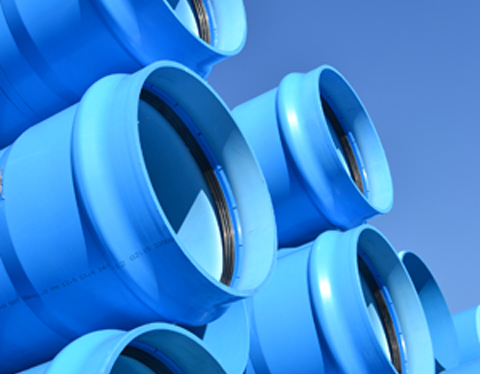

Diamond (C900) PVC Pipe (4” through 12”) is made of 12454 compound per ASTM D1784, in accordance with the dimensional chemical, and physical requirements of AWWA C900. Diamond (C900) PVC Pipe bears the mark of NSF, International (NSF), the listing of Underwriters Laboratory, Inc. (UL), and (DR14 & DR18) bears the listing of Factory Mutual(FM). Some factory locations produce C900 bearing the mark of the Canadian Standards Association (CSA) and NSF14. Diamond (C900) PVC Pipe utilizes a gasket, per ASTM F477, to seal the integral bell socket to the spigot of the next joint (which conforms to the requirements of ASTM D3139.) Each male end is beveled to facilitate joint assembly, and the spigot is referenced marked to ensure proper insertion depth. Diamond furnished lubricant is to be used in the joining process. Specialty gaskets may be available upon request.

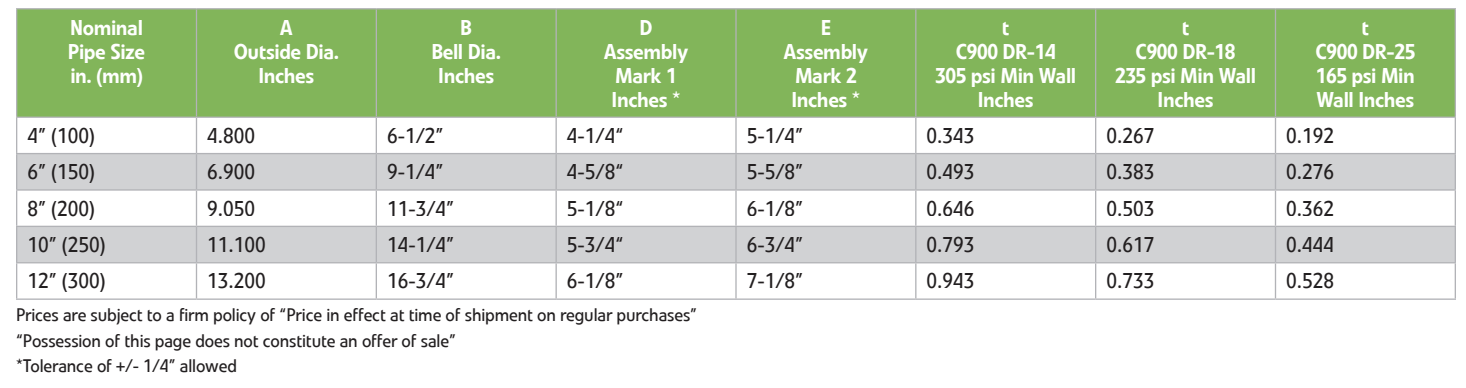

AWWA C900 SPECIFICATION DATA. SUPPLIED IN 20 AND 22 FOOT LAYING LENGTHS.
