3-12 INCH A-2361 RWGV FLXFL

3-12 INCH A-2361 RWGV FLXFL

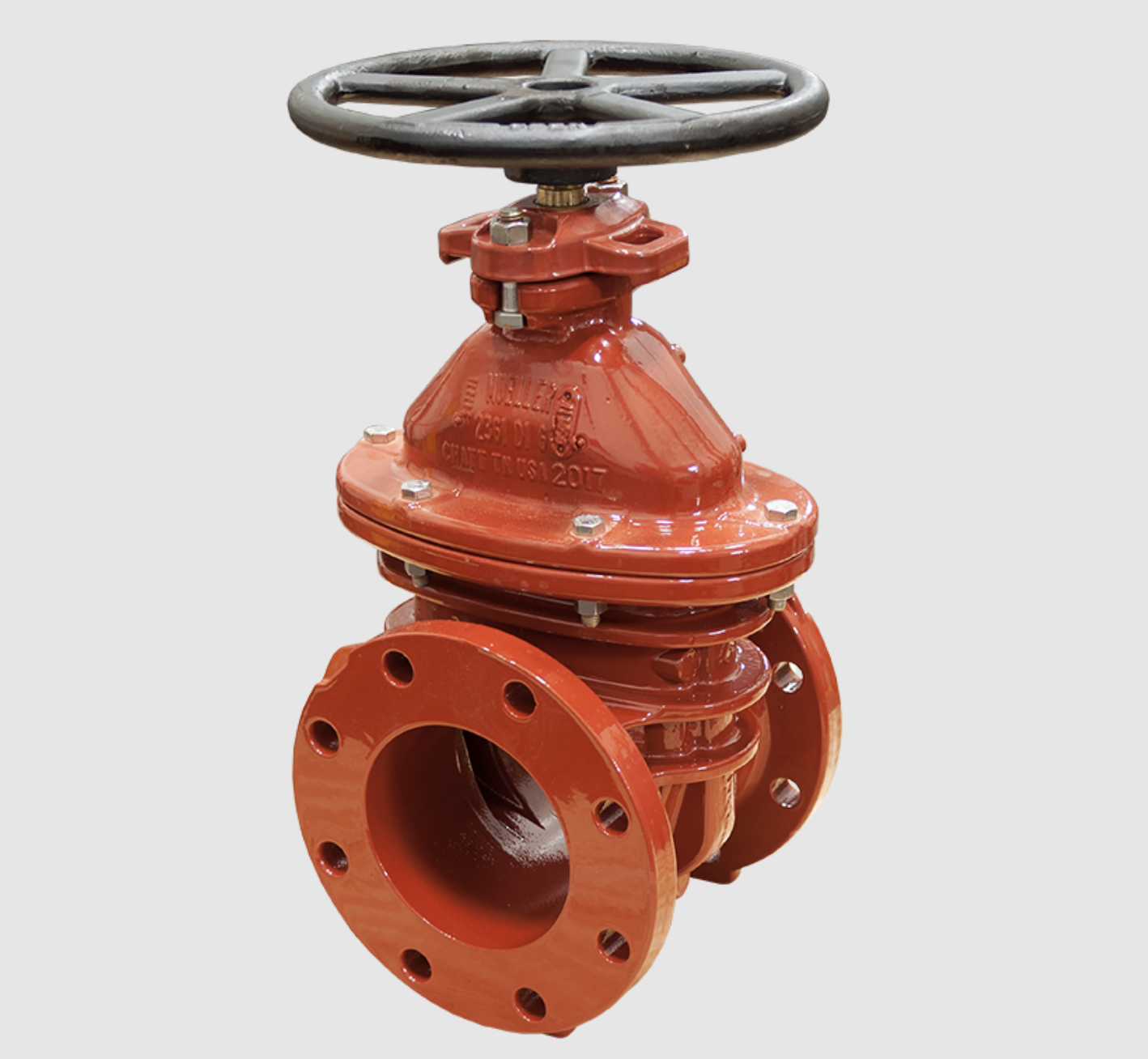

Mueller® 350 psi Resilient Wedge A-2361 Gate Valves. Sizes 3"-12".

Catalog number: A-2361-6 flanged ends

SPECIFICATIONS:

• Sizes – 3", 4", 6", 8", 10", 12"
• Meets or exceeds all applicable requirements of ANSI/AWWA C515*** Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
• Flanged end drilling complies with ASME/ANSI B16.1 Class 125
• Iron body with nominal 10 mils Pro-Guard^® Fusion Bonded Epoxy Coated interior and exterior surfaces
• Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
• Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
• Non-rising stem (NRS)
• Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
• 2" square wrench nut – open left or open right
• 350 psig (2400 kPa/24 barg) maximum working pressure, 700 psig (4800 kPa/48 barg) static test pressure
• UL Listed, FM Approved: 350 psig (2400 kPa/24 barg)
• Designed for potable water applications

OPTIONS:*

• Position Indicators
• Stainless steel stem: Type 304, Type 316
• Low zinc, silicon bronze ASTM B98-C66100/H02 stem
• 2" square wrench nut
• P/N 10/16 Drilling
• EPDM Disc and O-rings
