SUPER CENTURION

SUPER CENTURION

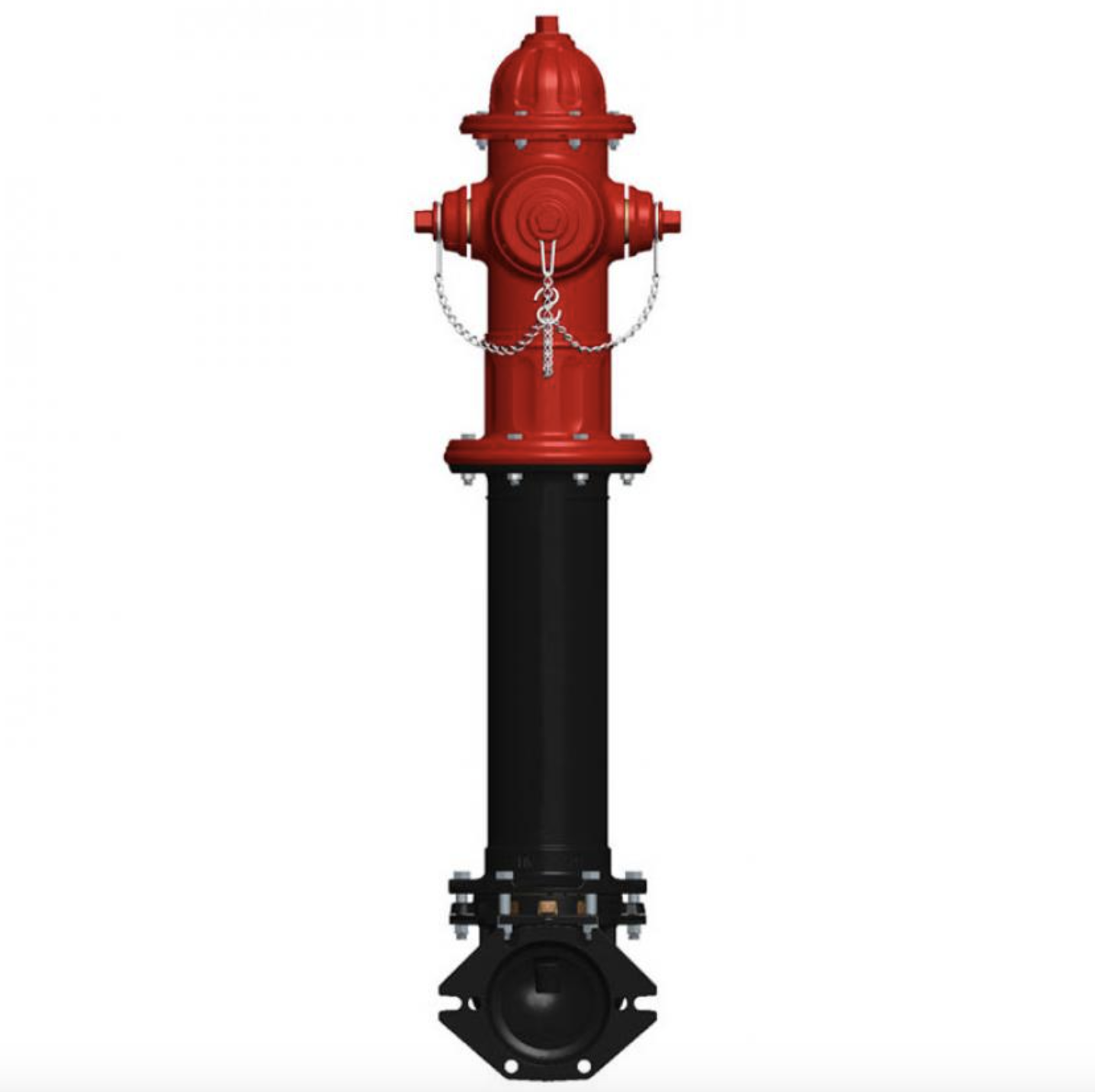

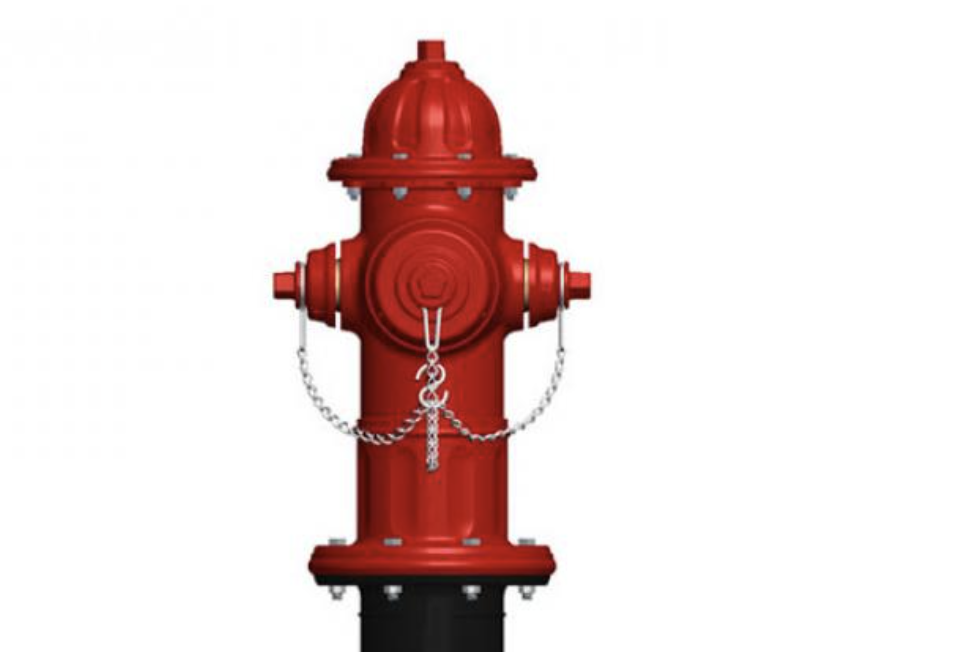

Performance and longevity are the real tests of a fire hydrant. Superior flow characteristics, easy operation, and maintenance and life-extending features are among the benefits of installing a Mueller® Super Centurion fire hydrant. Super Centurion hydrants are made in our U.S.A. plant that is ISO 9001 certified, and backed by a 10-year limited warranty on materials and workmanship.

FEATURES INCLUDE:

• 10 year limited warranty on material and workmanship
• Meets all applicable parts of ANSI/AWWA C502 Standard
• Post type dry barrel design
• Dry top design with O-ring sealed oil reservoir
• Traffic feature with stainless steel safety stem coupling
• Compression-type main valve closes with pressure for positive seal; it is made of rubber and is conveniently reversible providing a spare for long service life
• Operating nut available in wide variety of shapes and sizes-open left or right
• Field replaceable hose and pumper nozzles
• Hose and pumper nozzles have large radius, full flow openings for low friction loss
• Contoured shoe is designed for full flow
• Dual bronze drain valves provide effective barrel drainage
• 350 psig (2400 kPa/24 barg) maximum working pressure, 700 psig (4800 kPa/48 barg) static test pressure
• 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
• 200 psig (1400 kPa/14 barg) maximum working pressure, 400 psig (2800 kPa/28 barg) static test pressure
